Independent Ceiling

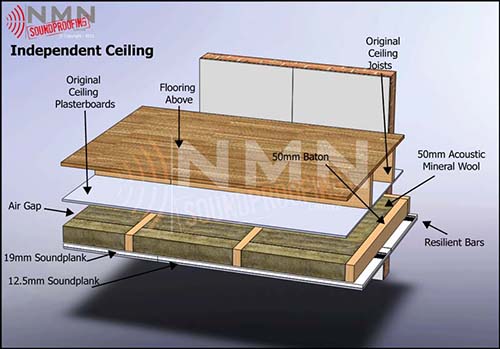

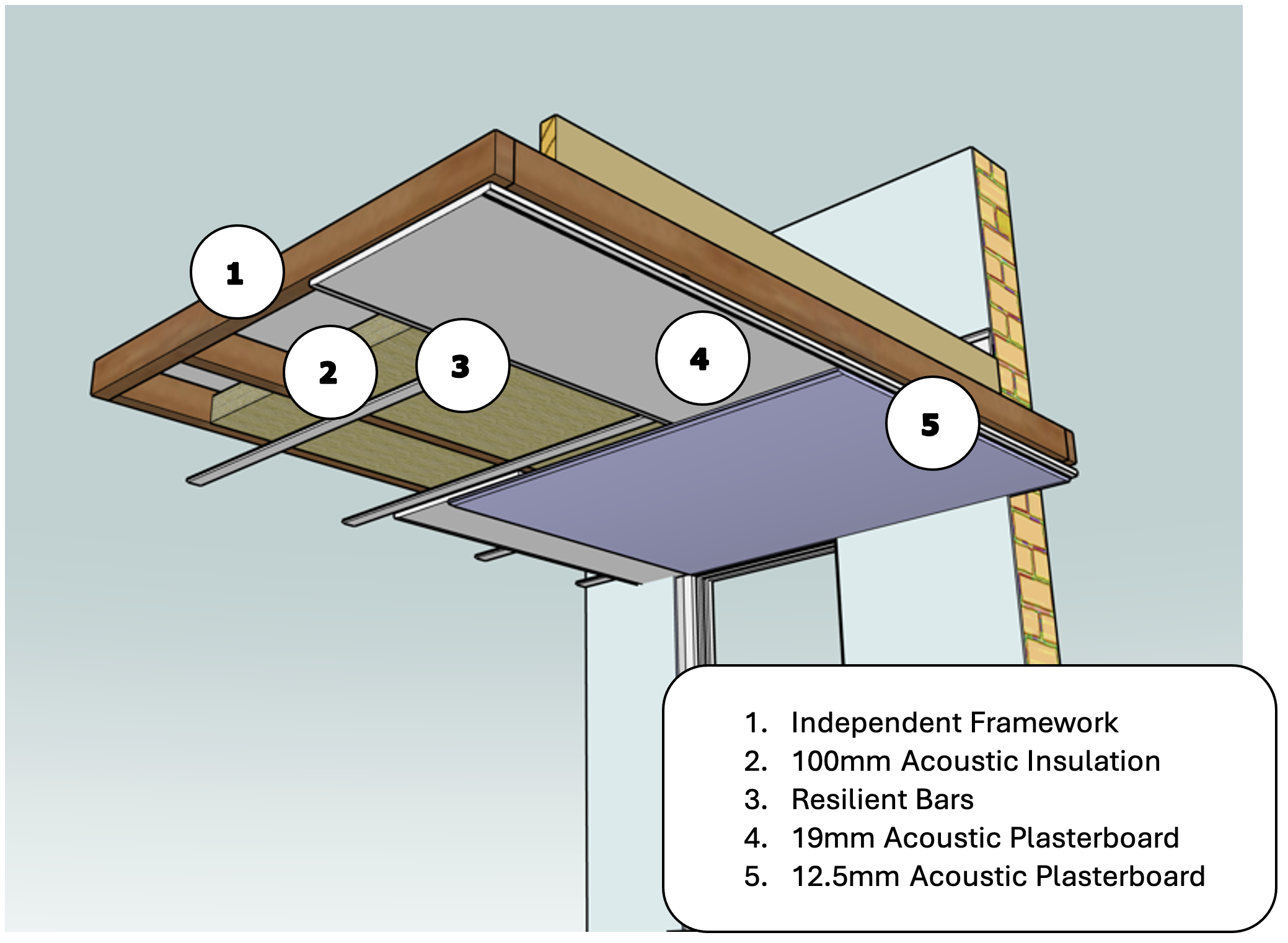

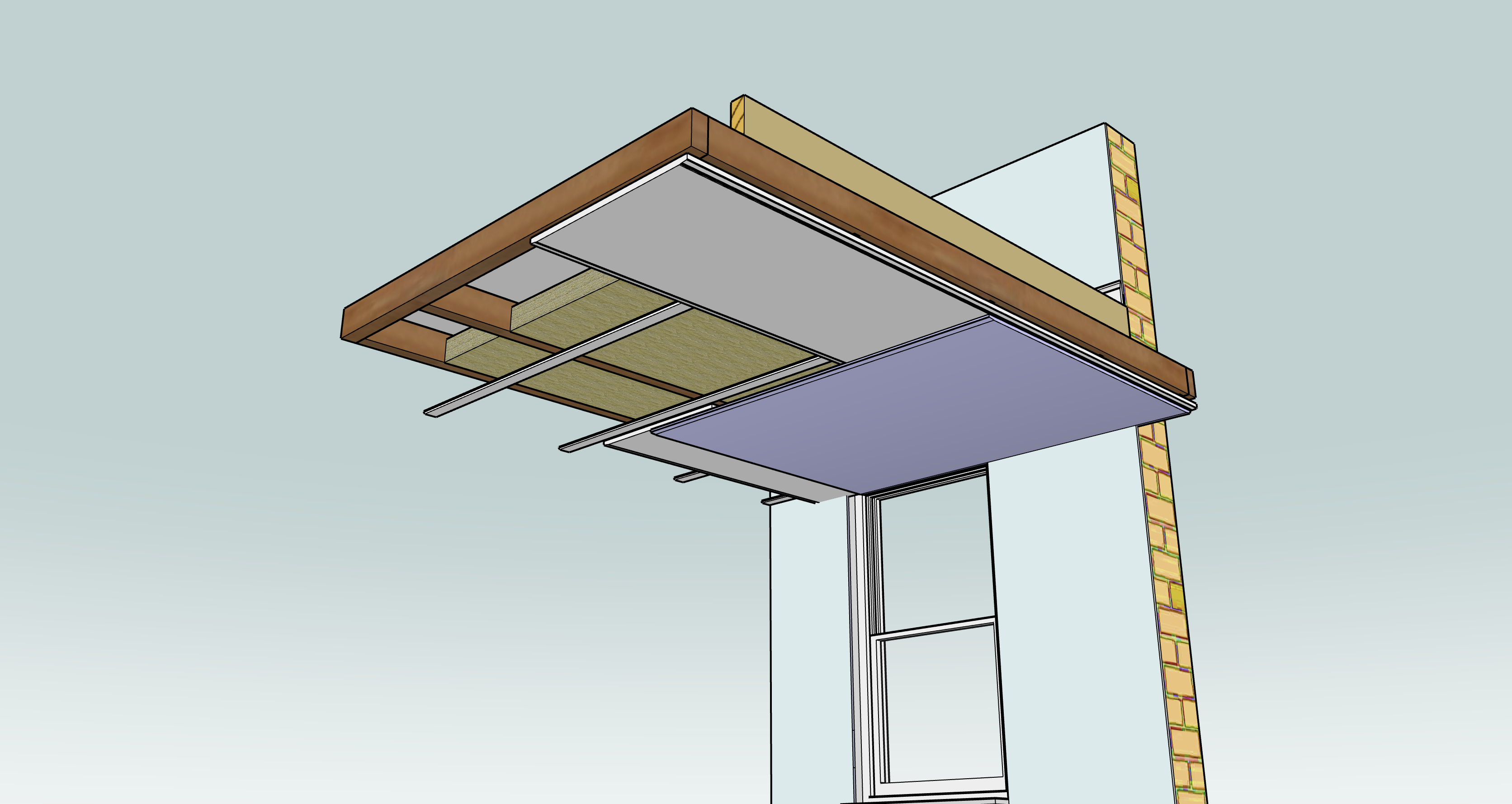

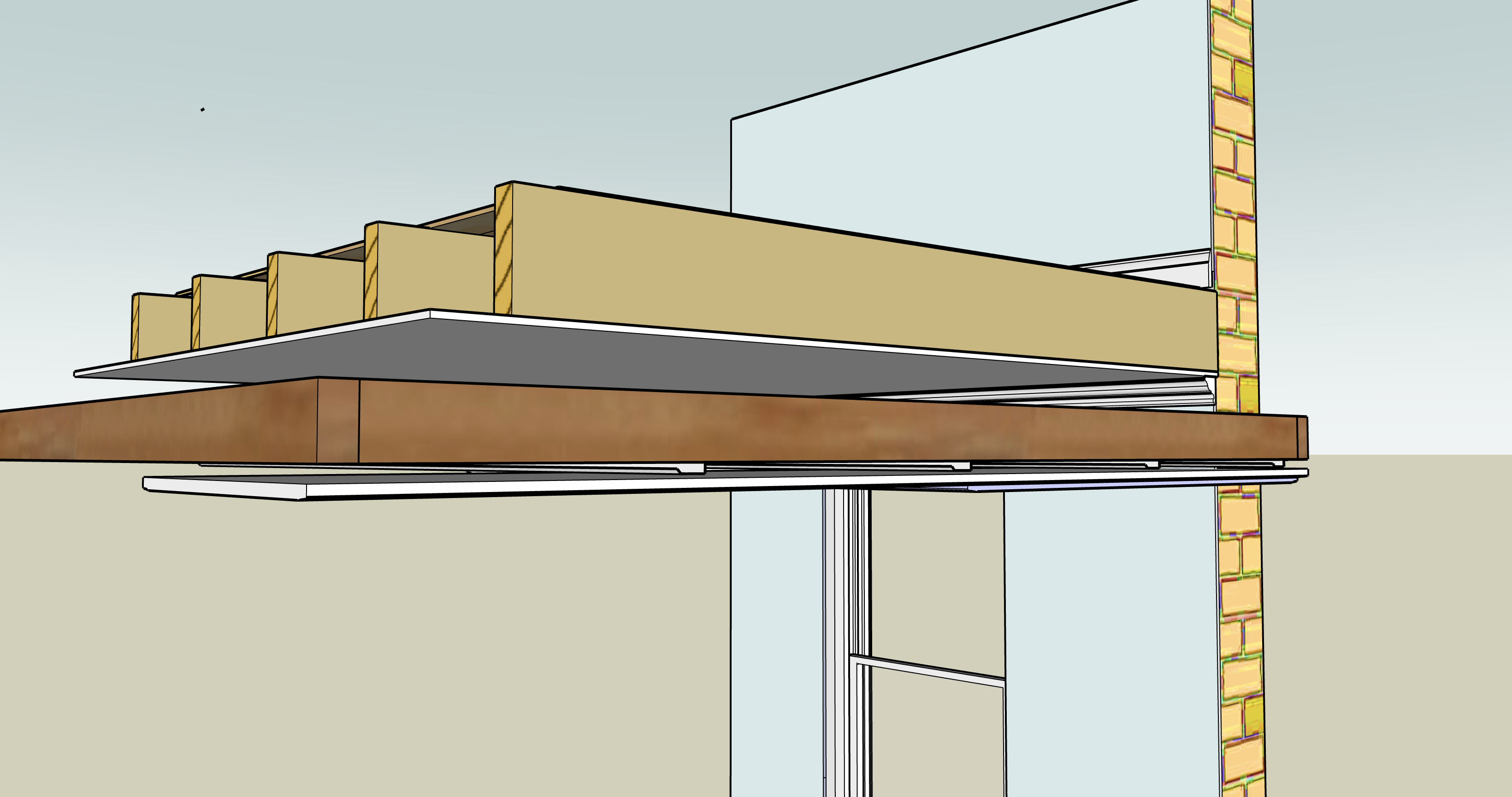

Independent Ceiling ViewAirborne and Impact noises. For cases were impact noise reduction is of huge importance. This system is ideally suited for rooms were you can afford loosing about 6.5- 7inches in a average sized room(please note that this will depend on the room span). New timber frame structure is fitted underneath problematic ceiling. Resilient bars are fixed to new joist. This system also utilize mineral wool and two layers of acoustic plasterboard 19mm and 12,5mm. The perimeter and all joints on 1st layer off board will be sealed with acoustic mastic.

System CEILING HEIGHT LOSS IMPACT PERFORMANCE (SRI) dB AIRBORNE PERFORMANCE (SRI) dB
Independent Ceiling System +/-170mm or +/-6.5inch 26db 14db

*This is an estimated reduction. The result will depend on the existing structure.

Click the images bellow to view full size image
