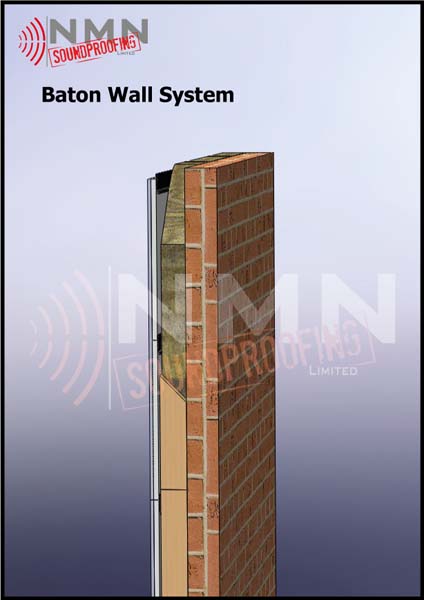

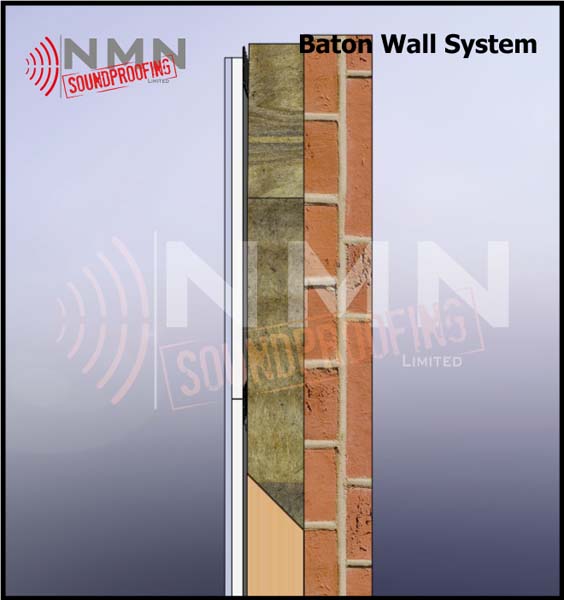

Baton Wall System

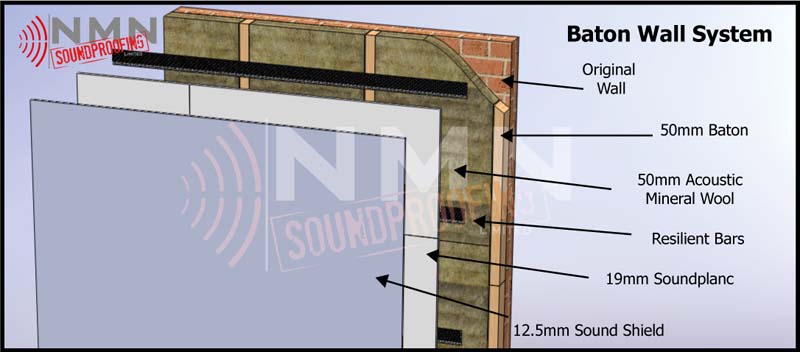

Baton WallAirborne and Impact Noise. Can be applied to any wall structure. 2 x 2 inch batons are fastened to wall. This will create a 2 inch void to install acoustic mineral wool can be installed. Resilient bars will be installed on the batons. This system utilise Acoustic Mineral Wool, Resilient Bars, 19mm and 12,5mm acoustic plasterboard. The perimeter and all joints on 1st layer off board will be sealed with acoustic mastic.

System System Thickness AIRBORNE PERFORMANCE (SRI) dB
Baton Walls System +/-100mm or +/-4inches 21db


Click the images bellow to view full size image
